As the global transition from fossil fuels accelerates, renewable energy sources like solar and wind are revolutionizing the way we generate electricity. Solar power, in particular, is playing a pivotal role, offering a clean, abundant, and sustainable energy source. However, this shift is not without challenges. One of the most intriguing—and problematic—issues emerging from increased solar adoption is the “duck curve.”

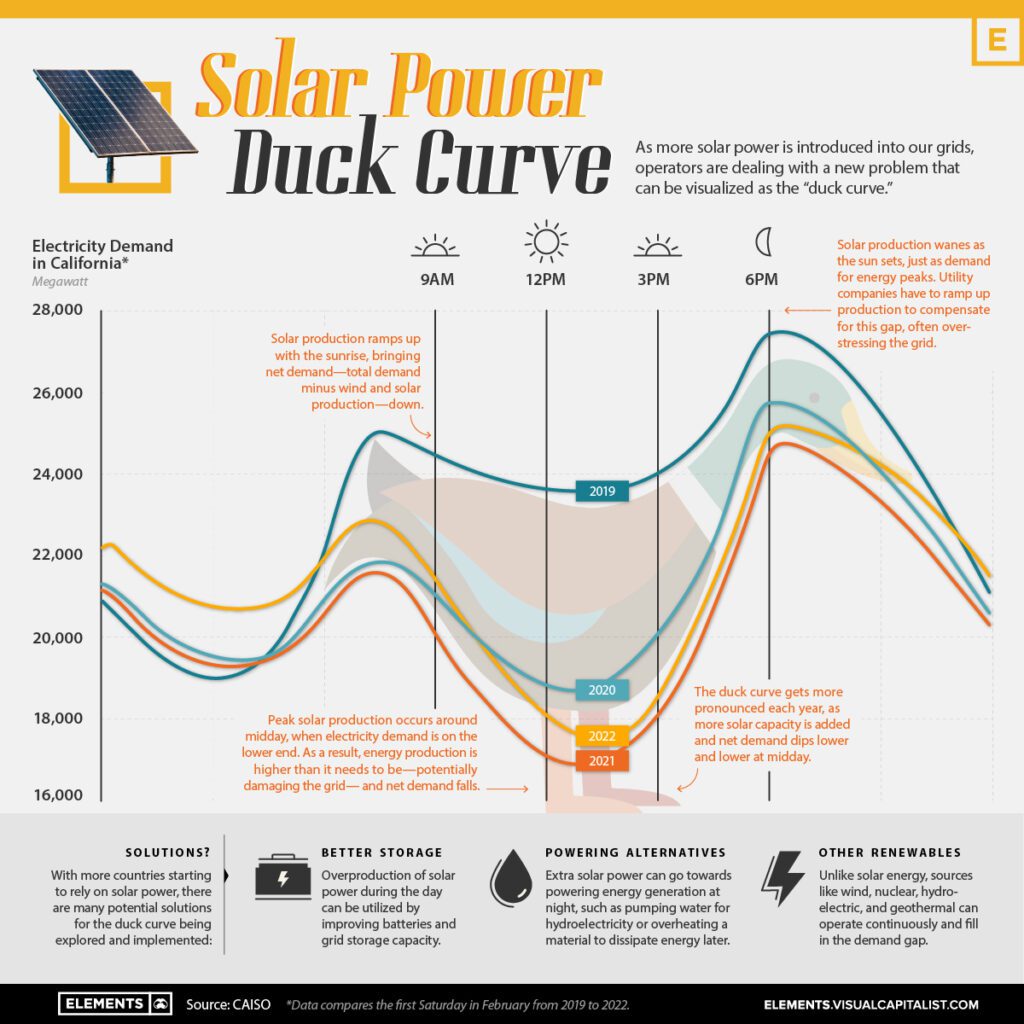

The duck curve is a graphical representation of the imbalance between energy production and demand caused by solar power generation. While solar energy is a boon for clean energy initiatives, its integration into the existing energy grid has created new hurdles for utility companies. These challenges must be addressed to maximize the benefits of solar energy without jeopardizing grid stability or economic feasibility.
Understanding the Duck Curve
The duck curve highlights the fluctuation in net energy demand over the course of a day, influenced heavily by solar power generation. Here’s a breakdown of how it forms:
- Midday Solar Surge: Solar panels generate the most electricity around midday, coinciding with lower energy demand. This results in a steep drop in net demand (total demand minus solar and wind production) during these hours.
- Evening Energy Spike: As the Sun sets, solar power generation rapidly declines, while energy demand rises as people return home, turn on lights, cook meals, and use appliances. This creates a steep ramp-up in net demand, forcing utilities to quickly increase power generation to meet the load.
- Increasing Severity Over Time: As more solar capacity is added, the midday dip grows deeper, and the evening spike becomes sharper, making the curve increasingly duck-like in shape.
Why the Duck Curve is a Problem
The duck curve presents two primary challenges that ripple through the energy ecosystem:
- Grid Stress and Overproduction:
- At midday, when solar energy production is high but demand is low, the excess energy can overload the grid. In some cases, operators are forced to curtail solar generation, wasting clean energy.
- This problem is especially pronounced during sunny seasons, such as spring and summer, when solar production peaks.
- Economic Strain on Traditional Energy Sources:
- Conventional power plants, like coal and nuclear facilities, are designed to operate continuously. Frequent shutdowns or reduced operation during midday make them less economically viable.
- Additionally, the steep ramp-up in demand during the evening places immense stress on the grid and power generation facilities, increasing wear and operational costs.
Solutions to Mitigate the Duck Curve
The duck curve is a complex challenge, but several strategies can help address its impact while paving the way for a more sustainable energy future:
1. Expand Energy Storage Systems
Energy storage is one of the most effective ways to manage the duck curve. By storing excess solar power generated at midday, we can release it when demand peaks in the evening.
- Battery Storage: Large-scale battery systems, such as Tesla’s Megapacks or lithium-ion storage farms, can balance supply and demand effectively.
- Pumped Hydro Storage: Surplus energy is used to pump water to higher elevations. During peak demand, the water is released to generate electricity.
- Thermal Storage: Solar heat can be stored in molten salts or other materials, which can then generate power after sunset.
2. Modernize the Grid
Investing in grid modernization is essential to handle the fluctuations caused by renewable energy.
- Smart Grids: Advanced grids use AI and IoT technologies to predict demand and optimize energy flow, ensuring a seamless balance between supply and demand.
- Flexible Grid Infrastructure: Upgrading the grid to accommodate rapid shifts in power generation and consumption can improve reliability.
3. Promote Demand Response Programs
Encouraging consumers to adjust their energy use can help balance the grid.
- Dynamic Pricing: Time-of-use pricing offers lower rates during midday, encouraging consumers to run appliances, charge electric vehicles, and perform energy-intensive tasks when solar power is abundant.
- Incentives for Flexibility: Reward programs can encourage businesses and homeowners to shift their energy use to off-peak hours.
4. Diversify Energy Sources
A diversified energy mix can help balance out solar fluctuations.
- Complementary Renewables: Wind power, which often generates energy at night, can fill in the gaps left by solar power.
- Hybrid Systems: Combining solar and wind in hybrid plants allows for more consistent energy generation.
5. Enhance Solar Panel Efficiency and Orientation
Optimizing solar installations can reduce overproduction during midday and extend energy generation into the late afternoon.
- East-West Solar Arrays: Orienting panels east-west instead of south maximizes morning and late-afternoon production, reducing the midday spike.
- Tracking Systems: Solar tracking technology enables panels to follow the Sun, improving energy output throughout the day.
6. Deploy Decentralized Energy Solutions
Decentralized energy systems can reduce grid stress and increase resilience.
- Rooftop Solar with Storage: Homes and businesses equipped with solar panels and batteries can generate, store, and use their own energy, reducing demand on the grid.
- Microgrids: These localized grids operate independently or in tandem with the main grid, allowing for more flexible energy management.
7. Export Excess Energy
Sharing solar power with neighbouring regions or states can alleviate overproduction.
- Interstate Energy Sharing: Regions with surplus solar energy can export it to areas with higher demand.
- Cross-Border Cooperation: International energy-sharing agreements can further enhance grid stability and reduce waste.
8. Invest in Flexible Power Plants
Power plants that can rapidly adjust their output are crucial for managing the evening ramp-up.
- Peaker Plants: These plants can quickly ramp up production to meet sudden demand spikes.
- Retrofits for Existing Plants: Upgrading conventional power plants to operate more flexibly can make them better suited to a renewable-dominated grid.
9. Plan for Controlled Curtailment
When overproduction cannot be avoided, controlled curtailment ensures grid safety without causing equipment damage.
The Path Forward
The duck curve underscores the complexities of transitioning to a renewable energy future. While the challenges are significant, they are not insurmountable. By investing in energy storage, modernizing the grid, and implementing innovative solutions, we can harmonize solar power with existing infrastructure and ensure a reliable, clean energy future.
The key lies in embracing a mix of technologies and strategies, coupled with forward-thinking policies and collaboration among stakeholders. The duck curve may be ruffling feathers today, but with the right approach, it can become a thing of the past, allowing us to fully harness the potential of solar power.
